Small Component Scale KKW
Solutions for small component dosing
Precise weighing and clean emptying
The KKW small component scale is the ideal solution for precisely dosing and weighing small component batches in bulk material processing. The individual components are sequentially dosed into the closed weighing container using dosing screws in coarse and fine flow. The discharge process is supported by the tapping motion of the lever lock on the flexible weighing hopper, ensuring complete and rapid emptying even of free-flowing bulk materials. Thanks to the integrated safety sensors and rapid weighing container emptying (≤ 1 minute), the KKW not only guarantees efficiency but also maximum safety during operation. Monitoring and control are carried out via the dosing control of the central plant control system.
- Fully automatic dosing system
- Modular and compact system
- High dosing and weighing accuracy
- Fast scale emptying
Your main advantages at a glance
Flexibility
The system features a modular and compact design that allows it to be flexibly adapted to different requirements. It is specially designed to weigh up to eight small components with precision, ensuring high efficiency in a minimum of space.
Performance
The system offers impressive throughput and enables weighing during dosing, which significantly speeds up the entire process. In addition, the rapid emptying of the scales ensures short cycle times and efficient production.
Quality
The system offers high dosing and weighing accuracy and allows freely selectable tolerance control to adapt the process to individual requirements. The knock function of the lever lock also ensures excellent emptying, which minimises residues and increases process reliability.
Safety
Safety sensors monitor the inspection openings and prevent the system from operating while they are open.
Service-friendly
The system is designed for easy cleaning and maintenance. All important components are easily accessible and can be cleaned or replaced without much effort. In addition, the well-thought-out design enables uncomplicated installation and quick commissioning, minimising downtime and increasing operating efficiency.

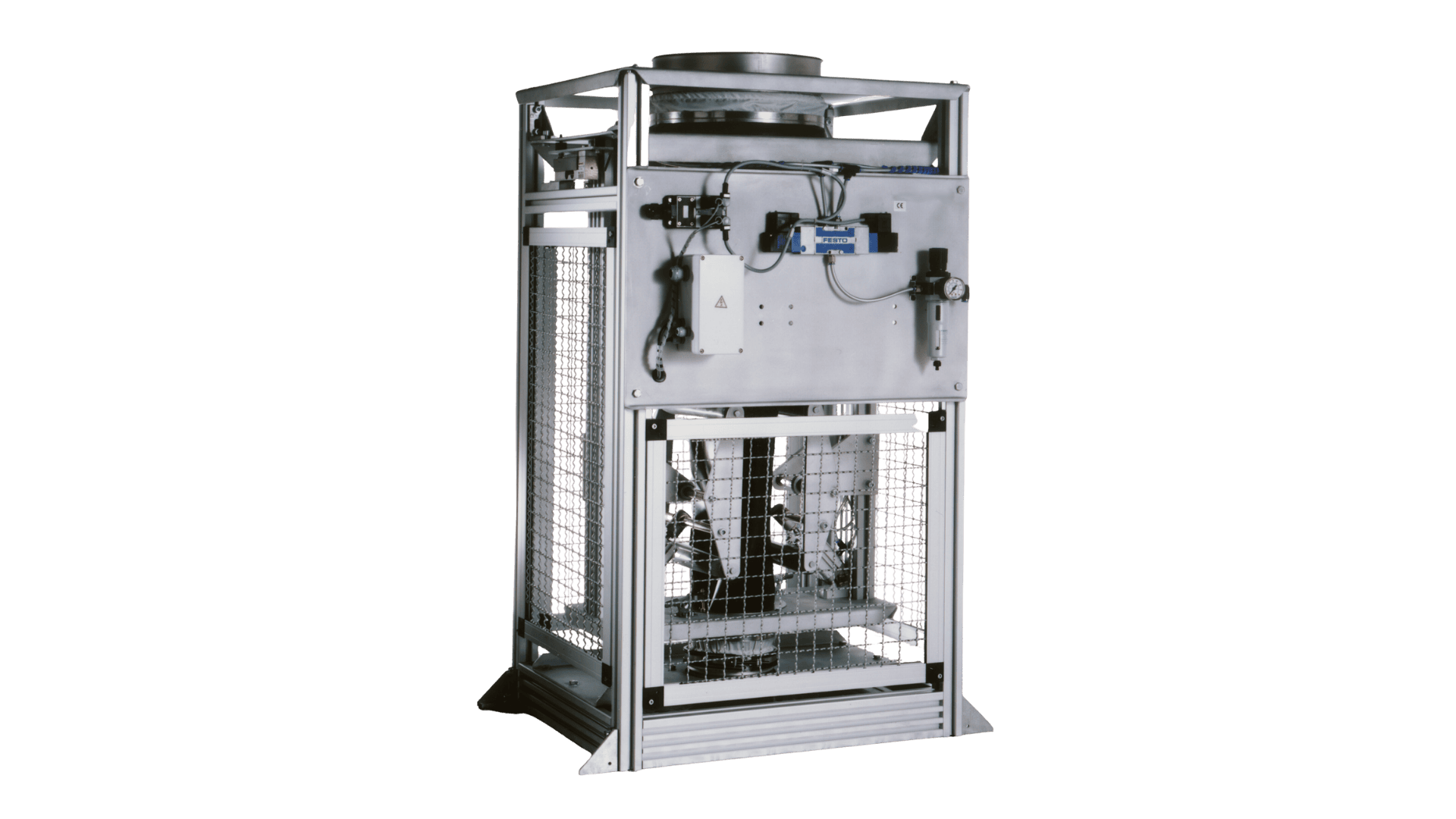

Flexible scale with variable connections
The scale frame supports the flexible weighing container, the container lid can be designed in various ways and accommodate several inlet connections. The connection box is secured by a lever lock. The system has two load cells and is prepared for operation with a central aspiration system. Flexible sleeves are available at the top for connecting the dosing elements or at the bottom for the receiving container.
Precise weighing of powders and granules
Our KKW small component weighing machine is used when powders or granules in the chemical or plastics industry, whether free-flowing or poorly flowing, need to be weighed accurately in batches. Typical areas of application are:
Key facts at a glance
Dosing capacity
The system achieves a dosing capacity of up to 10 batches per hour and enables the scales to be emptied in ≤ 1 minute.
Sizes
Available in the following sizes: 2.5, 5, 15, 25, 50, 100 and 200 kg.
Application
The KKW small component scale is used for weighing free-flowing, powdery, poorly flowing and granular bulk materials. Typical bulk densities range from 400 to 900 kg/m³.
Pressure
Pressureless
Temperature
From +10 to +50 °C
Materials
Parts in contact with the product are corrosion-resistant.
Engine
Pneumatic locking lever
Want more details? Our contact persons will be happy to help you.
