Horizontal Cooling Mixer HC
Stays cool – for top products
For a wide range of processes and highest demands
The horizontal cooling HC mixer is used for efficient cooling of bulk materials in the plastics and chemical industries. The double jacket in a state-of-the-art pillow plate design is pressure-resistant up to a maximum of 7 bar. A turbulent water flow guarantees optimum heat transfer and fast, effective cooling of the bulk material.
The mixing tools also enable high mixing performance, which is crucial when adding further components (e.g., during double batching) to the cooling mixer.
In combination with a high-intensity mixer, it has proven itself in various applications such as: PVC dry blend, compounding, WPC, etc.
Key advantages at a glance
- Short cooling times
- Pressure-resistant double jacket (max. 7 bar)
- Excellent mixing quality
- Gentle material handling
- Low dead space design
- Excellent residual emptying
- Intelligent design for minimal maintenance costs
- Control concept for intuitive operation
- Configurable for a wide range of applications in the fields of plastics, chemicals, minerals, and dyes
- Consistent cooling performance by preventing fouling
- Expandable with extensive options (chopper, liquid addition, etc.)
Application areas
Plastics industry
In plastics processing, cooling mixers are used after hot mixing to bring the heated material to processing temperature quickly and in a controlled manner. This prevents thermal damage and optimally prepares the mixed material for further processing.
Chemical industry
In the chemical industry, cooling mixers control exothermic reactions and gently cool sensitive substances after mixing. This not only improves product stability, but also significantly increases process safety.
Benefits
Special Highlights
Long-standing expertise
With over 70 years of experience in process engineering, Zeppelin Systems offers proven solutions for demanding mixing processes. This expertise flows directly into the development and optimization of the cooling mixer HC.
Global presence
More than 18,000 mixers installed worldwide speak for the reliability and performance of our technology. The cooling mixer HC is an established system that enjoys global trust.
Flexible sizes
The cooling mixer HC is available in six sizes ranging from 1,700 to 8,500 liters and can be optimally adapted to different production requirements – for maximum efficiency and scalability.
Product details

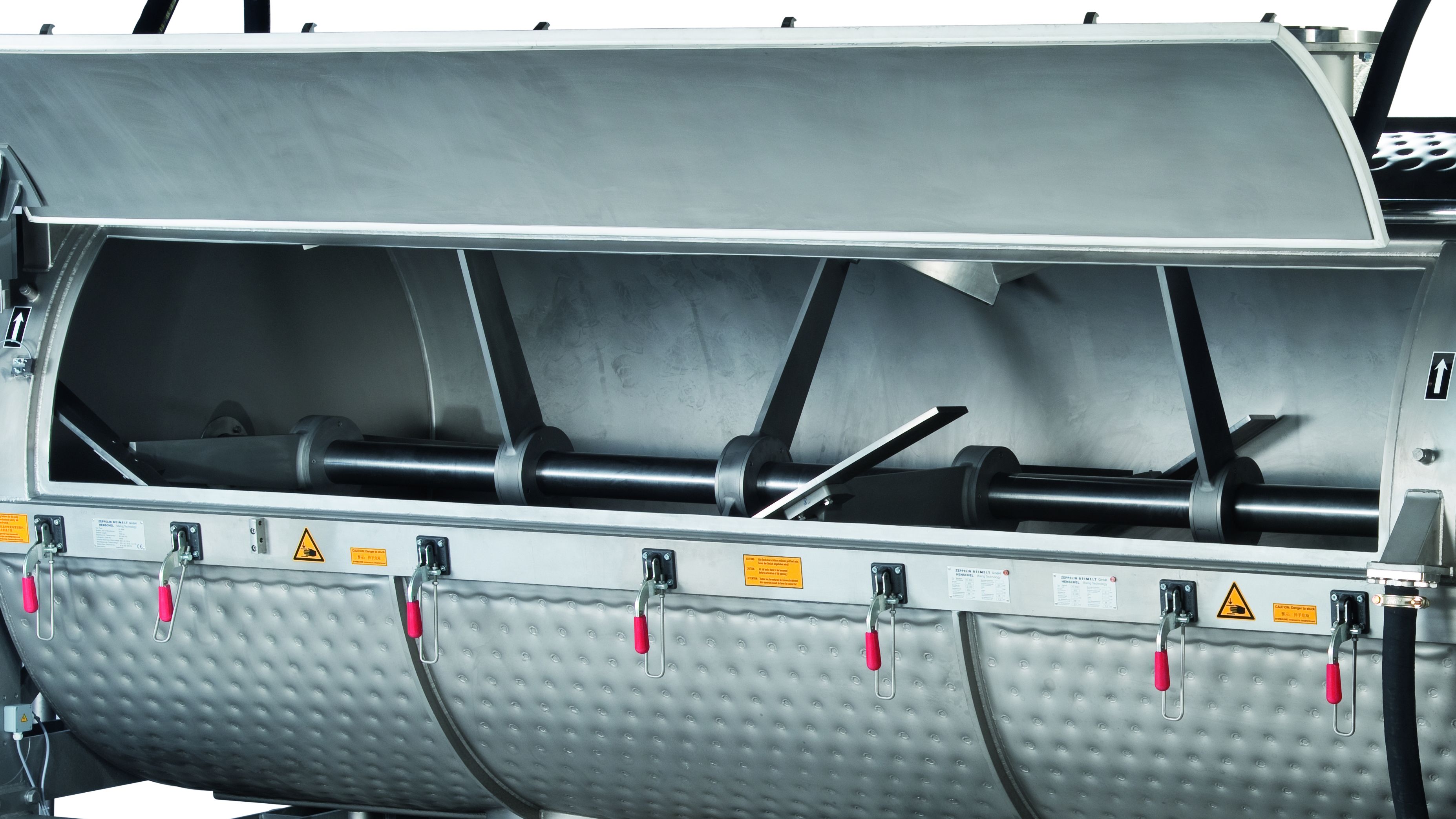

Large lid opening
Good accessibility for cleaning and maintenance purposes.

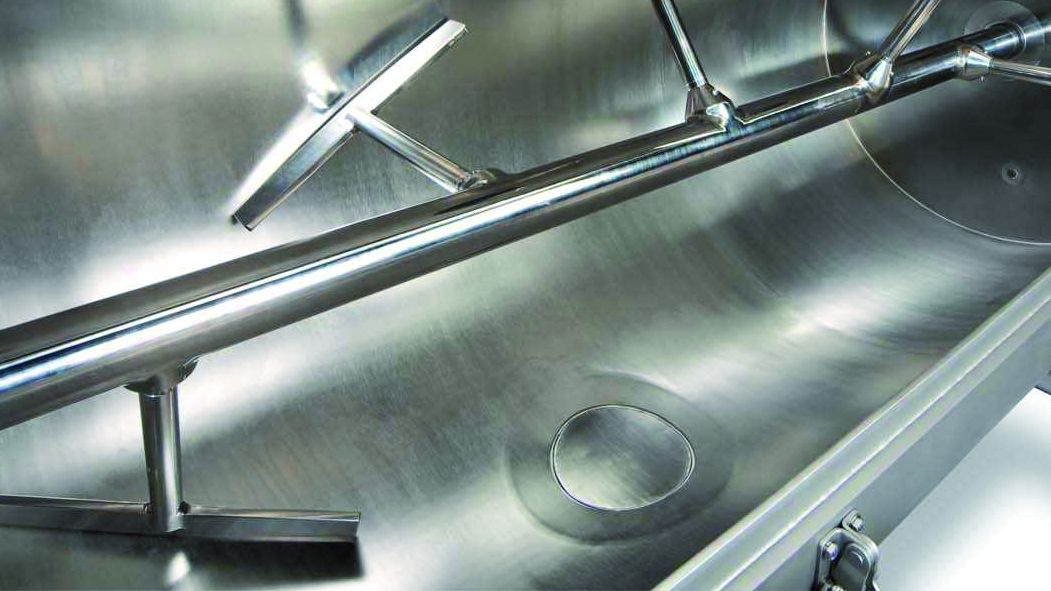

Dead space free discharge
Discharge plate adapted to the inner contour of the bowl.

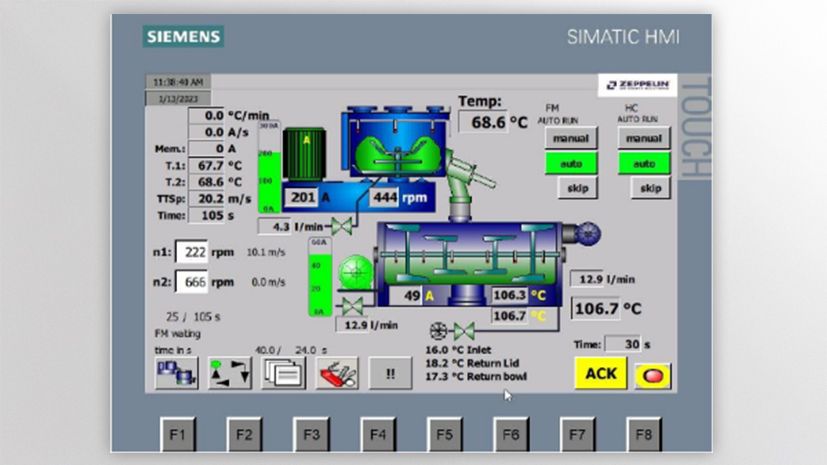

Intuitive mixer control
The mixer control system features an intuitive user interface that makes it easy to operate in both manual and automated modes.

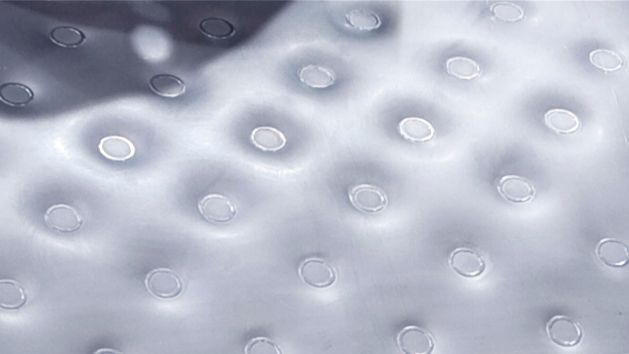

Pillow plate design
Double jacket in pressure-resistant pillow plate design, inner and outer jacket made of high-quality stainless steel
Accessories and options
Perfect additions for cooling mixer HC
We offer various accessories and options for seamless integration and flexible use of our cooling mixer. These include, among others:
Jet filter
Filter with automatic cleaning for ventilating the mixer and for fast, dust-free removal of air during filling.
Chopper
Chopper as agglomerate crusher and for increased dispersion performance. The amount depends on the application and size.
